Hi-Z Antennas (tm)

8125 S.W. Larch Dr. Culver OR 97734 USA

Hi-Z was coined to be synonymous with high impedance. Z is the accepted engineering term for impedance. The specialty at Hi-Z Antennas is signal processing from shortened vertical antennas which reflect very high impedances at low frequencies.

Mission Statement After decades of research and extensive engineering, Hi-Z was created from my passion in this field. Therefore my passion and experience is embodied in every product I design. Lee K7TJR

About Hi-Z opens in a new page. Just close the page to return to here. Contact

New 8 Element Arrays

Click the picture for the 8 Element Array Page

******************************************************************************

Our New Lineup of Hi-Z

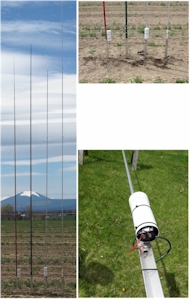

Verticals For Your Hi-Z Arrays

Now supplying all the parts for your Hi-Z Systems

Antenna Purchasing details Download pdf of Vertical Antennas

******************************************************************************

4-Square Array Receiving System

This controller was specifically designed to provide superior receiving performance on the 160, 80, and 40 meter amateur radio bands. It combines the signals from 4 shortened vertical antenna elements arranged in a square. The elements can either be tuned resonant with radials or elements with Hi-Z amps. With tuned elements the array is single band unless the element tuning is switched. With the Hi-Z amps the array is wide-band, covers all three bands, and needs no radials. The controller can switch the receiving pattern in 4 directions providing outstanding low-band receiving performance nearly like a beam antenna.

Hi-Z Antennas (tm) parts necessary to build this array:

Download product data sheet Power Point Presentation

4 ea Hi-Z amplifiers 4 Square Layout Diagram

1 ea 4-square controller Sound Bites

1 ea 4-element shack switch Application Notes

Purchase A Complete Assembled and Tested Standard System Here

Total Price $501.00, includes shipping to USA, International shipments require extra communication. Contact

Includes 4 ea Hi-Z amps, Controller, Shack switch, Delay cables for 80 foot spacing, and 75 ohm preamp all assembled and tested.

Accessories / parts

Frequently asked questions

Testimonials

Items needed but not supplied by Hi-Z

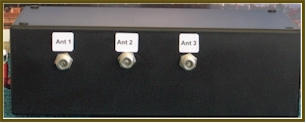

3 Element Triangular Array Receiving System

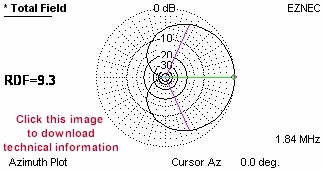

This controller was specifically designed to provide superior receiving performance on the 160, 80, and 40 meter amateur radio bands. It combines the signals from 3 shortened vertical antenna elements arranged in a triangle. The elements can either be tuned resonant with radials or elements with Hi-Z amps. With tuned elements the array is single band unless the element tuning is switched. With the Hi-Z amps the array is wide-band, covers all three bands, and needs no radials. The controller can switch the receiving pattern in 6 directions providing outstanding low-band receiving performance nearly like a beam antenna.

Hi-Z Antennas (tm) parts necessary to build this array:

Download product data sheet Power Point Presentation

3 ea Hi-Z amplifiers 3 Element Layout Diagram

1 ea 3-element controller Sound Bites
